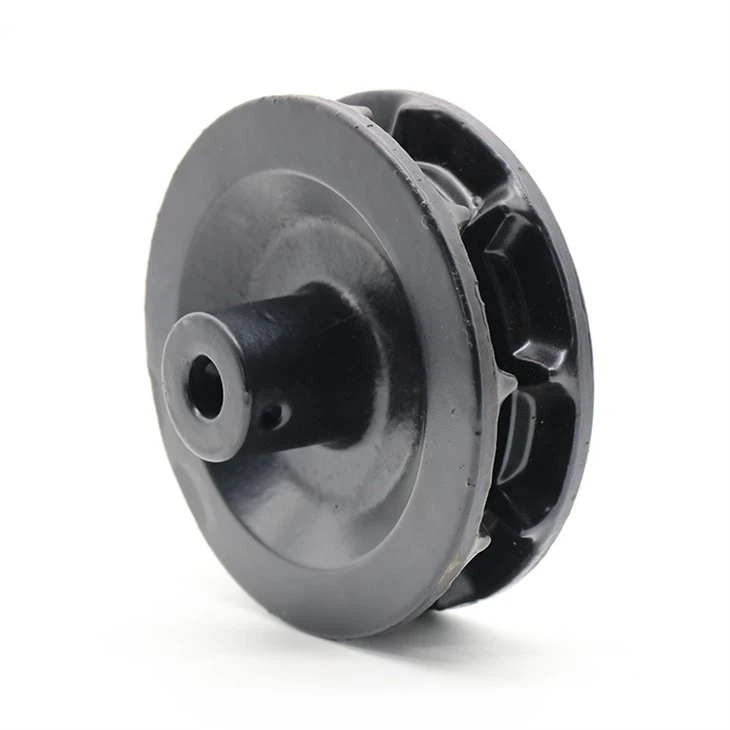

Gate Valve Chainwheel

Designed for smooth manual operation of gate valves installed at elevated or hard-to-reach locations.
Manufactured from carbon steel, cast iron, or stainless steel for excellent strength and wear resistance.
Precision-machined teeth ensure stable engagement with the operating chain, reducing slippage during use.
Available in multiple diameters and bore sizes to match various valve stem and handwheel specifications.
Suitable for indoor and outdoor industrial environments, with optional galvanized or powder-coated surface finishes.

Send Inquiry

Product Introduction

Hangzhou Xiaoshan Chuangye Metal Processing Co., Ltd is one of the most reliable manufacturers and suppliers of gate valve chainwheel in China. If you're going to wholesale customized gate valve chainwheel, welcome to get more information from our factory. For price consultation, contact us.

Precision Gate Valve Chainwheel Features

Accurate Chain Engagement Design
The tooth profile is precisely processed to maintain consistent contact with the chain, ensuring reliable valve operation with reduced operating resistance.

High Load-Bearing Performance
Reinforced wheel structure provides strong torque transmission capability, suitable for frequent valve opening and closing operations.

Flexible Installation Compatibility
Available with different mounting dimensions, center holes, and connection designs to fit various gate valve systems.

Enhanced Surface Protection
Professional surface treatments improve corrosion resistance and extend service life in demanding industrial conditions.

Stable Manufacturing Quality
Strict control of machining accuracy and dimensional tolerances ensures smooth rotation and dependable performance for long-term use.

Get A Solution

Gate Valve Chainwheel

High-Performance Gate Valve Chainwheel Structural Design

Reinforced Rim Structure

The outer rim is designed with increased strength to withstand repeated pulling forces from the chain and maintain shape stability during long-term operation.

Optimized Spoke Configuration

The internal spoke layout is designed to balance weight and strength, providing stable support while reducing unnecessary material usage.

Precision Center Hub Processing

The hub area is machined with accurate dimensions to ensure secure connection with valve operating components and maintain alignment during rotation.

Smooth Edge and Tooth Transition

The wheel rim and chain teeth are carefully formed to minimize impact during chain movement, supporting quieter operation and longer component life.

Chuangye Provides Customized Gate Valve Chainwheel Solutions

Gate Valve Chainwheel

Chuangye specializes in providing customized Gate Valve Chainwheel solutions based on different valve structures and operating requirements. With professional machining capabilities, we support personalized designs in wheel diameter, center hole size, tooth profile, material selection, and surface treatment. Our team works closely with customers to optimize product performance, ensuring accurate fit, stable operation, and reliable service in various industrial valve applications. From prototype development to batch production, Chuangye delivers consistent quality and flexible manufacturing support for global valve manufacturers and distributors.

FAQ

1. Can you manufacture chainwheels according to our existing valve drawings?
Yes. We support customized production based on customer drawings, samples, or technical specifications. Our engineering team can confirm dimensions, connection methods, and manufacturing details before production.

2. What size range of Gate Valve Chainwheels can you produce?
We manufacture chainwheels in various sizes to meet different valve applications. The wheel diameter, hub dimensions, and chain matching requirements can be customized according to customer needs.

3. How do you ensure the quality consistency of each batch?
Each production stage includes dimensional inspection and process control, covering material checking, machining accuracy, surface finish, and final assembly verification to maintain stable product quality.

4. What is the typical lead time for customized Gate Valve Chainwheel orders?
Production time depends on product structure, quantity, and customization requirements. Standard samples can be prepared quickly, while mass orders are scheduled according to the confirmed production plan and inspection requirements.

Hot Tags: gate valve chainwheel, China, suppliers, manufacturers, factory, wholesale, price, customized, 8 Cast Iron Handwheel , Cast Iron Handwheel For Valve, Cast Iron Straight Hand Wheel, Industrial Cast Iron Handwheel, Machine Welding Handwheel, Valve Hand Wheel Cast Iron

No Information

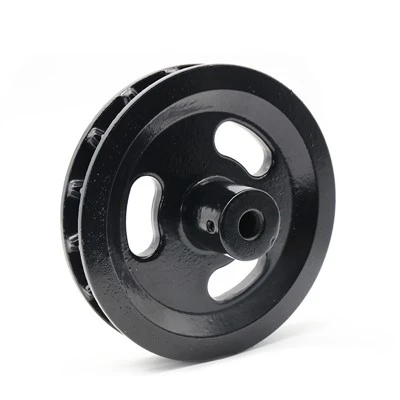

Carbon Steel Chainwheel
