Cast Iron Handwheel with Revolving Handle is precision cast from high-strength cast iron for stable wheel structure. Its chrome-plated surface delivers good rust and wear resistance. The revolving handle rotates freely with the handwheel to reduce hand friction during repeated adjustment for easier operation. The central hub features a standard keyway hole for simple installation and reliable positioning. Widely used for manual adjustment of machine tools, valves and various industrial equipment, suitable for long-term heavy-duty working conditions with multiple specifications available.

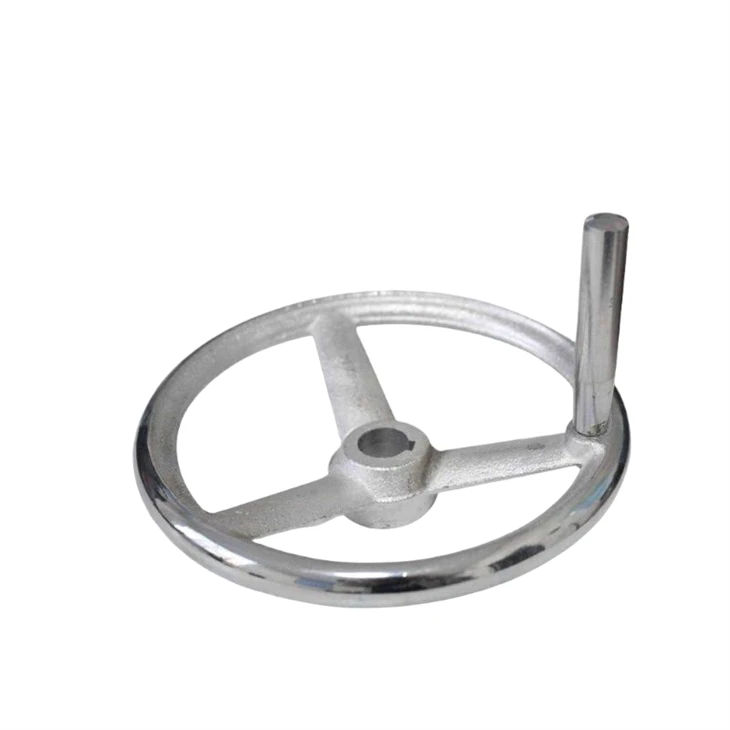

Cast Iron Handwheel With Revolving Handle
Durable Cast Iron Construction – Made from cast iron for reliable strength and long-term industrial use.
Revolving Handle Design – Smooth-grip revolving handle improves operating comfort and reduces hand fatigue.
Stable Manual Control – Provides controlled torque transmission for valves, machinery and industrial equipment.
Custom Size Options – Bore, outer diameter, hub and handle specifications can be customized to match equipment.
Factory Direct Manufacturing – Supports OEM requirements with consistent production quality and flexible specifications.
Revolving Handle Design – Smooth-grip revolving handle improves operating comfort and reduces hand fatigue.
Stable Manual Control – Provides controlled torque transmission for valves, machinery and industrial equipment.
Custom Size Options – Bore, outer diameter, hub and handle specifications can be customized to match equipment.
Factory Direct Manufacturing – Supports OEM requirements with consistent production quality and flexible specifications.
Send Inquiry
Product Introduction
Hangzhou Xiaoshan Chuangye Metal Processing Co., Ltd is one of the most reliable manufacturers and suppliers of cast iron handwheel with revolving handle in China. If you're going to wholesale customized cast iron handwheel with revolving handle, welcome to get more information from our factory. For price consultation, contact us.
High Quality Cast Iron Handwheel with Revolving Handle Features
Smooth Polished Rim – Finished rim provides a clean contact surface and comfortable hand positioning during operation.
Secure Revolving Grip – Rotating handle follows hand movement naturally for smoother and more controlled adjustment.
Precision Machined Hub – Machined hub helps maintain accurate shaft alignment and dependable mounting performance.
Keyway Ready – Optional keyway machining supports secure torque transfer and helps prevent shaft slippage.
Balanced Spoke Structure – Solid spoke construction provides consistent load distribution during repeated manual operation.
Multiple Bore Configurations – Bore dimensions can be produced to suit different shafts, equipment layouts and assembly requirements.
Industrial-Grade Finish – Surface treatment is selected to support long-term use in demanding mechanical environments.
Cast Iron Handwheel with Revolving Handle Specifications
| Item | Description |
|---|---|
| Product Name | Cast Iron Handwheel with Revolving Handle |
| Material | High-strength Grey Cast Iron HT200 / HT250 |
| Surface Treatment | Chrome plating / Spray painting (Black, Silver Grey optional) |
| Handle Type | Revolving Handle |
| Handle Material | Carbon Steel (Chrome plated or black oxide finish) |
| Handwheel Diameter (mm) | 100 / 125 / 160 / 200 / 250 / 300 / 350 / 400 |
| Spoke Style | 3-spoke / 4-spoke (Depends on size) |
| Bore Size (mm) | 12 / 14 / 16 / 18 / 20 / 25 (Customizable) |
| Hub Keyway | Standard GB flat keyway, custom per drawing available |
| Bore Type | Plain bore / Keyway bore / Threaded bore |
| Working Temperature | -20℃ ~ +120℃ |
| Application | Valves, machine tools, hydraulic equipment, textile machinery, packaging machinery |
| Standard | GB/T 9439 Casting Standard |
| Packaging | Bubble bag inner, carton / wooden case outer for reinforcement |
| Lead Time | 7–15 days for standard sizes; custom orders to be confirmed |
Professional Cast Iron Handwheel with Revolving Handle Manufacturer
Experienced Manufacturing Team
We manufacture cast iron handwheels in-house with established machining and production capabilities.
Made to Your Drawings
We support custom dimensions, bore sizes, handle configurations and mounting requirements based on customer specifications.
Controlled Production Quality
Each production stage is monitored to maintain dimensional consistency and reliable assembly across batches.
OEM Supply Support
We work with industrial equipment manufacturers, valve companies and distributors on repeat orders and customized handwheel requirements.
FAQ
1. Can the handwheel be supplied according to our shaft dimensions?
Yes. We can manufacture the handwheel based on your shaft diameter, bore requirements, mounting method and technical drawing to ensure proper fit with your equipment.
2. Can you produce handwheels for replacement applications?
Yes. We support replacement orders for existing equipment. Customers can provide a sample, drawing or key dimensions, and we can evaluate the required specifications before production.
3. What information is needed for a custom handwheel quotation?
The main details include handwheel diameter, bore size, hub dimensions, handle type, material requirements, quantity and surface finish. A technical drawing is preferred when available.
4. How do you handle quality consistency for repeat orders?
We keep the approved specifications as the production reference and control critical dimensions during manufacturing. This helps maintain consistency between initial and repeat batches.
5. Can you support different quantities for different projects?
Yes. We can discuss production quantities according to the project requirements and provide a suitable manufacturing plan for standard orders, replacement parts and recurring OEM supply.
