Reliable Chainwheel Solutions for Data Center Cooling Systems
Reliable manual valve operation solutions designed for modern data center cooling infrastructure. Our chainwheels help operators access difficult-to-reach valves installed in chilled water systems, mechanical rooms, and elevated pipelines, improving maintenance efficiency and operational safety.From standard configurations to customized designs, we provide engineered chainwheel solutions for HVAC contractors, valve manufacturers, and data center infrastructure projects.
Improving Valve Accessibility with Chainwheel Solutions
Data center cooling systems often include extensive chilled water networks, mechanical rooms, and complex pipeline arrangements. Due to installation requirements, many manual valves may be located in elevated positions, narrow equipment areas, or locations where direct operation is inconvenient.
Our chainwheel solutions provide an effective way to extend manual valve operation points without modifying the existing pipeline structure. By connecting the chainwheel to the valve through a chain mechanism, operators can safely operate valves from a more accessible working position, reducing maintenance difficulties and improving operational efficiency.
Designed for data center cooling infrastructure, HVAC systems, and mechanical engineering applications, our chainwheels help facility teams improve valve accessibility while maintaining reliable manual control for system isolation, maintenance procedures, and routine inspections.
Reliable cooling performance is essential for data center operation. By providing a practical valve operation solution, chainwheels support safer maintenance practices and more efficient management of critical cooling systems.
Addressing Critical Maintenance & Operational Layouts
A chainwheel helps overcome installation challenges by transferring the valve operating position to a more accessible location, allowing maintenance teams to perform manual valve operations more efficiently while maintaining the original pipeline arrangement.
Manual Valve Roles in Cooling Networks
- System isolation during maintenance
- Pipeline section control
- Equipment replacement procedures
- Emergency shutdown operations
- Routine inspection activities
Common Limited-Access Installation Areas
- Elevated chilled water pipelines
- Mechanical plant rooms
- Pump system areas
- Dense equipment zones
- Restricted maintenance spaces
Chainwheel Applications in Data Center Infrastructure
Chilled Water Distribution Systems
Large data centers commonly use chilled water systems to remove heat generated by IT equipment. These systems contain multiple isolation valves distributed throughout supply and return pipelines. Chainwheels help operators access valves installed in difficult positions during maintenance and system adjustment.
HVAC Mechanical Rooms
Mechanical rooms often contain complex arrangements of pumps, pipes, and control equipment. Limited installation space may make traditional handwheel operation inconvenient. Chainwheel solutions provide additional flexibility for manual valve operation in compact mechanical layouts.
Cooling Tower Water Systems
Cooling tower systems require reliable water circulation and isolation control. Valves installed around tower piping may require extended operating solutions due to height or accessibility limitations.
Data Center Expansion Projects
During facility expansion, new cooling pipelines may need to be integrated with existing infrastructure. Chainwheels provide a flexible solution when valve locations cannot be easily modified.
Representative Data Center Applications from Chuangye
Elevated Chilled Water Pipeline Project
A data center cooling project required multiple manual isolation valves to be installed on elevated chilled water pipelines. Due to the pipeline arrangement, operators could not easily access the valve operating points. The project team selected chainwheel solutions to extend valve operation to accessible working areas. The chainwheel design was reviewed according to valve dimensions and installation conditions, ensuring compatibility with the existing cooling system layout.
Application: Chilled water pipeline system
Challenge: Valves installed above normal operating height
Solution: Extended manual valve operation through chainwheel installation
Result: Improved maintenance accessibility without changing original layout
Mechanical Plant Room Application
A large mechanical plant room contained multiple valves positioned near pumps and other cooling equipment. The limited clearance around these components created difficulties for direct manual operation. A chainwheel solution was introduced to provide operators with a more convenient operating position. The system maintained the original equipment arrangement while improving daily maintenance efficiency.
Application: Data center mechanical room
Challenge: Limited operating space around valves
Solution: Chainwheel-assisted valve operation
Result: Easier access during inspection and maintenance procedures
Data Center Cooling Expansion Project
During a cooling system expansion project, additional pipelines were installed while existing mechanical infrastructure remained operational. Several new valves were positioned in areas where direct operation was inconvenient. Instead of redesigning the entire pipeline structure, chainwheels were integrated into the valve assemblies. This approach helped maintain the planned system layout while improving future operation convenience.
Application: Cooling infrastructure expansion
Challenge: Restricted valve access after pipeline installation
Solution: Customized chainwheel integration
Result: Improved compatibility with existing facility design
Engineering Considerations for Selection
Selecting the correct chainwheel for a data center application requires understanding the complete installation environment. A suitable chainwheel should not only match the valve but also work effectively within the surrounding mechanical environment. For complex projects, reviewing installation drawings, valve information, and site conditions helps ensure the final solution meets operational requirements.
Chainwheel Options & Specifications
Stainless Steel Chainwheel Solutions
Stainless steel chainwheels are suitable for applications where corrosion resistance and long service life are important. They are commonly considered for environments with moisture exposure or projects requiring durable components for long-term operation.
Cast Iron Chainwheel Solutions
Cast iron chainwheels provide excellent mechanical strength and are suitable for industrial applications where durability and cost efficiency are important factors. They are widely used in heavy-duty valve operation systems requiring reliable performance.
Engineered Sizes for Diverse Valve Applications
Different data center cooling projects may use various valve sizes and installation arrangements. Our chainwheel production range covers approximately 125 mm to 1250 mm, allowing tailored solutions for different valve sizes and operating conditions.
Core Engineering Variables:
• Valve connection
• Mounting dimensions
• Shaft compatibility
• Installation space
• Operating environment

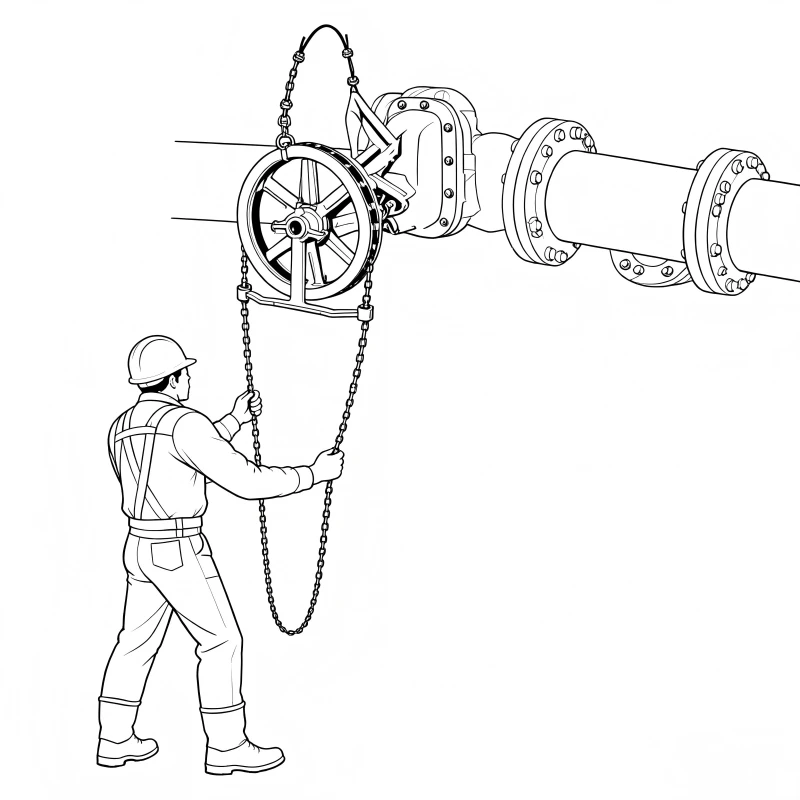

Supporting Infrastructure Projects & Upgrades
Data center projects usually involve cooperation between multiple parties, including mechanical contractors, HVAC suppliers, valve manufacturers, and facility operators. As a specialized chainwheel manufacturer, we support project requirements through technical drawing review, dimension confirmation, product selection assistance, prototype verification, production coordination, and quality inspection support.
For New Construction: Considering chainwheel installation during the early design stage helps engineers optimize valve accessibility, maintenance routes, equipment spacing, and operator working conditions.
For Facility Upgrades: When valve relocation is difficult or costly in existing layouts, chainwheels provide a practical retrofit option-improving access to existing valves, supporting equipment expansion, and optimizing operation convenience.
Quality Control in Manufacturing
Reliable performance starts with consistent manufacturing control. During production, chainwheel components are rigorously inspected according to customer requirements:
- Dimensional accuracy
- Structural quality
- Mounting compatibility
- Surface condition
- Assembly performance
Partnering With Mechanical Suppliers
Our chainwheels are supplied as industrial valve operating components for companies involved in:
- Valve manufacturing
- HVAC engineering
- Mechanical system integration
- Industrial equipment supply
- Infrastructure projects
Why Choose Our Chainwheels for Data Center Projects?
Specialized Focus
We focus on valve operating components, allowing us to continuously improve product design, manufacturing consistency, and application experience.
Flexible Support
From standard requirements to customized engineering projects, we support customers with technical communication and production coordination.
Complex Installations
Our chainwheel solutions help solve valve accessibility challenges in elevated pipelines, mechanical rooms, and restricted installation areas.
Reliable Supply
With professional production processes and quality inspection procedures, we support long-term cooperation with distributors and engineering companies.
Reliable Manual Valve Operation for Data Center Cooling
Data center cooling systems require reliable operation, convenient maintenance, and well-designed infrastructure components. Chainwheels provide a simple yet effective solution for improving manual valve accessibility in complex cooling networks. Through application-focused design, flexible manufacturing, and project support, we help customers develop reliable valve operation solutions for modern data center facilities.
