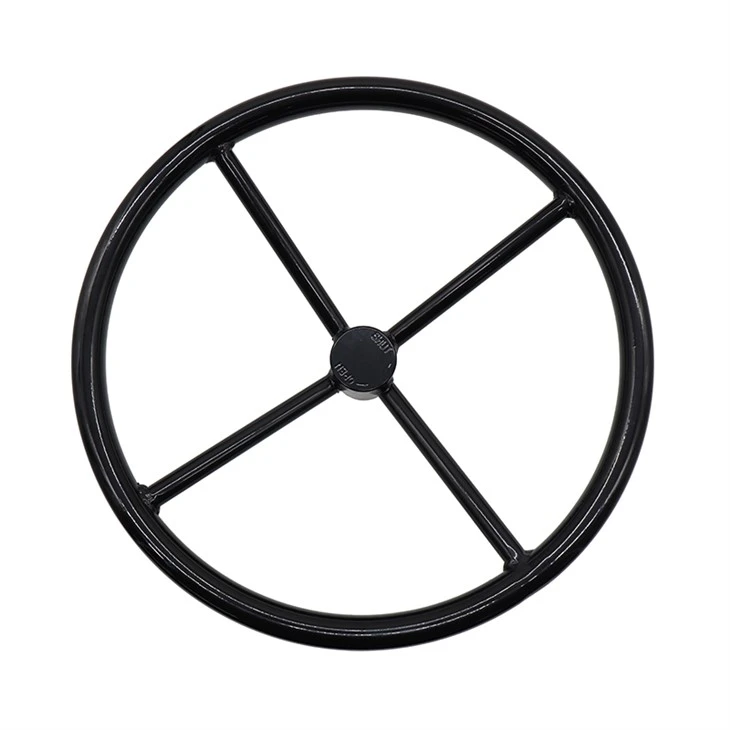

Plug Valve Handwheel

Hangzhou Xiaoshan Chuangye Metal Processing Co., Ltd is one of the most reliable manufacturers and suppliers of plug valve handwheel in China. If you're going to wholesale customized plug valve handwheel, welcome to get more information from our factory. For price consultation, contact us.

Plug valve handwheel is a type of valve that allows for quick opening and closing of pipes by simply turning a handwheel. This type of valve is widely used in industries that require high-pressure lines and corrosive fluids.

Features:
1. Simple design: The plug valve handwheel has a simple design, which makes it easy to maintain and repair.
2. Compact size: This valve is designed to be very compact, which makes it ideal for use in tight spaces.
3. High-pressure capacity: The plug valve handwheel is capable of handling high-pressure lines, making it perfect for use in industries that require high-pressure fluids.
4. Corrosion-resistant: These valves are typically made from materials that are highly resistant to corrosion and can withstand harsh environments.



 Advantages:
1. Quick operation: The plug valve handwheel allows for quick opening and closing of pipes, which can help to optimize production times and reduce downtime.

2. Reliable: These valves are built to be very reliable and durable, which means they can withstand heavy usage and frequent opening and closing.

3. Cost-effective: Plug valves are typically less expensive than other types of valves, which makes them an attractive option for industries that require multiple valves to be installed.

4. Easy maintenance: The simple design of plug valves makes them easy to maintain and repair. This means that downtime can be reduced and production times can be optimized.



Plug Valve Handwheel Application



Plug valves with handwheels are the most common type of plug valve used in various industrial processes such as chemical, power, oil and gas, water treatment and many more. They are designed to regulate the flow of fluids and liquids with high pressure and temperature.



The valve incorporates a tapered or conical plug that rotates inside the valve body to control the flow of fluids through the valve. The plug valve can be rotated a quarter turn using the handwheel, which spins the plug, allowing for a full flow opening or complete shut-off of the fluid.



Plug valves with handwheels can be made from a range of materials including carbon steel, stainless steel, and alloys. The choice of material depends on the specifications of the fluid being transported through the valve and the operating conditions.



One of the main advantages of using plug valves with handwheels is their simple and reliable design. They are easy to maintain, and their replaceable parts offer a longer lifespan. Furthermore, they require low maintenance costs, saving owners both time and money.



Another advantage of plug valves with handwheels is the ability to use them in applications that require frequent actuation. The manual operation of the handwheel enables quick and precise opening and closing of the valve as needed.



In summary, plug valves with handwheels play an essential role in the industrial process. They are designed to handle a range of fluids and liquids, and their simple and reliable design offers optimum performance and low maintenance costs. The manual operation of the handwheel enables quick and precise control of flow, providing a reliable solution for industrial processes.















Customized services：





Hangzhou Xiaoshan Chuangye Metal Processing Co., Ltd.

We manufacture custom handwheels to meet specific valve and equipment requirements. Customers can specify dimensions, shape, mounting configuration, color, surface finish, and logo. We also produce handwheels from customer drawings or samples, with critical dimensions controlled during machining and inspection. Our manufacturing process is focused on consistent fit, reliable torque transmission, and long-term service performance. Depending on the application, we can select suitable materials and surface treatments to meet mechanical and environmental requirements while maintaining consistent production quality.

1. Tailoring our products to meet customer specifications is a core commitment. Whether it's size, color, or material process parameters, we excel in customizing handwheels based on customer-provided drawings, ensuring a bespoke solution.



2. Our dedication to customer satisfaction extends to high-quality pre-sale and after-sales service. We prioritize swift responses to any inquiries, providing comprehensive support for a seamless experience throughout the consultation and post-purchase phases.



3. Quality is paramount. Our products undergo rigorous quality testing before leaving the factory, reflecting our commitment to maintaining stringent quality control standards and delivering reliable, top-notch solutions.



4. To safeguard our products during transportation, we adopt a meticulous packaging approach. Each item is individually packed in bubble bags and then collectively placed in wooden cases. This minimizes friction between products, enhancing durability and extending their overall service life.



5. With decades of expertise in handwheel manufacturing, our seasoned technicians bring a wealth of experience to the industry. This extensive knowledge, combined with a commitment to excellence, ensures that our products consistently meet and exceed quality standards, setting us apart from our competitors.



Material customization:	Customization services allow customers to select materials based on specific needs, including different kinds of metals, plastics or composites. According to the requirements of the application environment, the material of the valve handwheel can be customized to ensure its corrosion resistance, wear resistance, high temperature resistance or other specific characteristics.
Size and shape customization:	The size, shape and rim design of the valve handwheel can be customized according to the customer's requirements. This includes diameter, thickness, handle shape, etc. to suit a specific valve or a specific operator's operating habits and working scenarios.
Surface treatment customization:	Different surface treatment options are available, such as polishing, sandblasting, anodizing, etc., to improve the appearance, corrosion resistance and wear resistance of the valve handwheel, while meeting customer requirements for aesthetics and functionality.
Special function customization:	According to customer needs, the logo, mark or engraving on the valve handwheel can be customized to facilitate the operator to identify the valve status, valve parameters or specific information, and improve the accuracy and efficiency of operation.
	According to the needs of specific industries or applications, customized special functions are provided, such as explosion-proof design, dust-proof and waterproof functions, anti-slip treatment, etc., to ensure that the valve handwheel is suitable for specific working environments and scenarios.

1. What is a plug valve handwheel, and what is its function?
A plug valve handwheel is a manual operating component used to rotate the valve stem and control the position of the plug. Depending on the valve design, turning the handwheel moves the plug between open, closed, or intermediate positions to control media flow.

2. What are the main design features of a plug valve handwheel?
A plug valve handwheel is generally designed with a rigid circular structure, a central mounting interface, and a rim or spoke configuration suitable for manual operation. The dimensions and connection details are determined by the valve size, stem arrangement, and required operating torque.

3. Where are plug valve handwheels commonly used?
They are commonly used on manually operated plug valves in oil and gas systems, petrochemical equipment, water treatment facilities, industrial processing lines, and general pipeline applications where local manual valve operation is required.

4. Can plug valve handwheels be customized?
Yes. Handwheels can be customized according to the valve manufacturer's drawings or technical specifications. Common customization parameters include outside diameter, thickness, hub dimensions, bore size, keyway, mounting configuration, and overall geometry.

5. How is the correct handwheel size determined?
The appropriate size depends on the valve's operating torque, stem dimensions, available installation space, and required mechanical advantage. The handwheel should provide sufficient leverage for reliable operation without creating excessive loads on the valve stem or operating mechanism.

6. What materials are commonly used for plug valve handwheels?
Material selection depends on the operating environment, mechanical requirements, production method, and cost considerations. Common options include cast iron, ductile iron, carbon steel, stainless steel, and other engineering materials specified by the valve manufacturer.

7. Can a plug valve handwheel be manufactured according to an existing valve design?
Yes. Custom handwheels can be produced from existing drawings, samples, or dimensional specifications. Critical dimensions such as the mounting bore, hub, keyway, and overall diameter need to be verified before production to ensure proper fit.

8. What handwheel configurations are available for plug valves?
Configurations may differ in spoke design, rim profile, hub structure, mounting method, and overall dimensions. The selected configuration should correspond to the valve's operating mechanism and the available installation space.

9. How does a handwheel affect the operation of a plug valve?
The handwheel provides the mechanical interface between the operator and the valve stem. Its diameter, geometry, and mounting structure influence the available operating leverage and the ease with which the valve can be manually positioned.

10. What factors should be considered when selecting a plug valve handwheel?
Key considerations include required operating torque, valve stem dimensions, handwheel diameter, mounting interface, material, surface treatment, operating environment, and available installation space. These parameters should be checked together rather than selecting a handwheel based on diameter alone.

11. What maintenance is required for a plug valve handwheel?
Routine inspection should check for cracks, deformation, corrosion, loose fasteners, and abnormal movement at the mounting connection. The valve stem and operating mechanism should also be maintained according to the valve manufacturer's maintenance requirements.

12. What safety considerations apply to plug valve handwheels?
The handwheel should provide secure manual operation and remain firmly connected to the valve stem or operating mechanism. Proper sizing is also important to prevent excessive operating force or mechanical loading during valve operation.

13. Are plug valve handwheels different for different industrial applications?
Yes. Industrial requirements can vary according to valve size, operating torque, environment, installation conditions, and corrosion exposure. This may result in different handwheel dimensions, materials, surface treatments, and mounting configurations.

14. Can plug valve handwheels be used in corrosive environments?
Yes, provided the handwheel material and surface treatment are selected for the specific environment. Corrosion-resistant materials, protective coatings, or appropriate finishing processes can be specified where the handwheel is exposed to moisture, chemicals, salt spray, or other corrosive conditions.

15. What are the advantages of a manual handwheel for plug valve operation?
A manual handwheel provides a direct mechanical method of operating the valve without requiring an external power source. It is particularly suitable for applications where local operation, straightforward maintenance, and a simple mechanical control arrangement are required.

16. Are there standards for plug valve handwheels?
The applicable requirements depend on the valve type, manufacturer, and intended application. In practice, handwheel dimensions and interfaces may be specified by valve standards, customer drawings, or the valve manufacturer's own design requirements. The relevant standard should therefore be confirmed for each project.

17. How does handwheel manufacturing quality affect valve operation?
Dimensional accuracy at the hub, bore, keyway, and mounting interface is important for proper fit and reliable torque transmission. Adequate structural strength and consistent machining also help prevent deformation, looseness, or premature failure during repeated operation.

18. Can plug valve handwheels be produced with different surface finishes?
Yes. Surface treatment can be selected according to material and service conditions. Options may include painting, powder coating, plating, or other protective finishes, depending on the required corrosion resistance, appearance, and application environment.

19. Can a replacement handwheel be fitted to an existing plug valve?
A replacement handwheel can be fitted when its critical dimensions and mounting configuration match the existing valve. The valve stem diameter, bore, keyway, hub dimensions, handwheel diameter, and operating clearance should be

verified before replacement.

20. What information is required to manufacture a custom plug valve handwheel?
For accurate quotation and production, manufacturers typically need a dimensional drawing, sample, or sufficient technical data. Important information includes handwheel diameter, thickness, hub dimensions, bore and keyway details, material requirements, surface treatment, quantity, and applicable dimensional tolerances.
