Welding Hand Wheel
Welding Handwheel Manufacturer
This welded construction suits handwheels that need specific diameters, spoke arrangements or shaft connections. Each handwheel is made around the operating mechanism, installation space and connection requirements of your equipment.
Hangzhou Xiaoshan Chuangye Metal Processing Co., Ltd. is a welded handwheel manufacturer supplying OEMs, valve suppliers and industrial equipment makers. We combine sheet metal welding, precision machining and finishing to produce handwheels to order.
- Rim, spokes and hub welded into one rigid assembly
- Diameters from 125 to 1,250 mm
- Bore, hub and keyway machined to drawing
Welded Handwheel Construction
Component 01 · Wheel Rim
The wheel rim forms the outer operating surface and sets the available leverage and installation envelope. Its diameter is selected to match the required torque and space.
- Diameter sets the available leverage
- Defines the installation envelope
Component 02 · Spokes
Spokes link the rim to the central hub. Their quantity, arrangement and profile follow the handwheel design and the operating torque required.
- Quantity and arrangement by design
- Profile set by operating torque

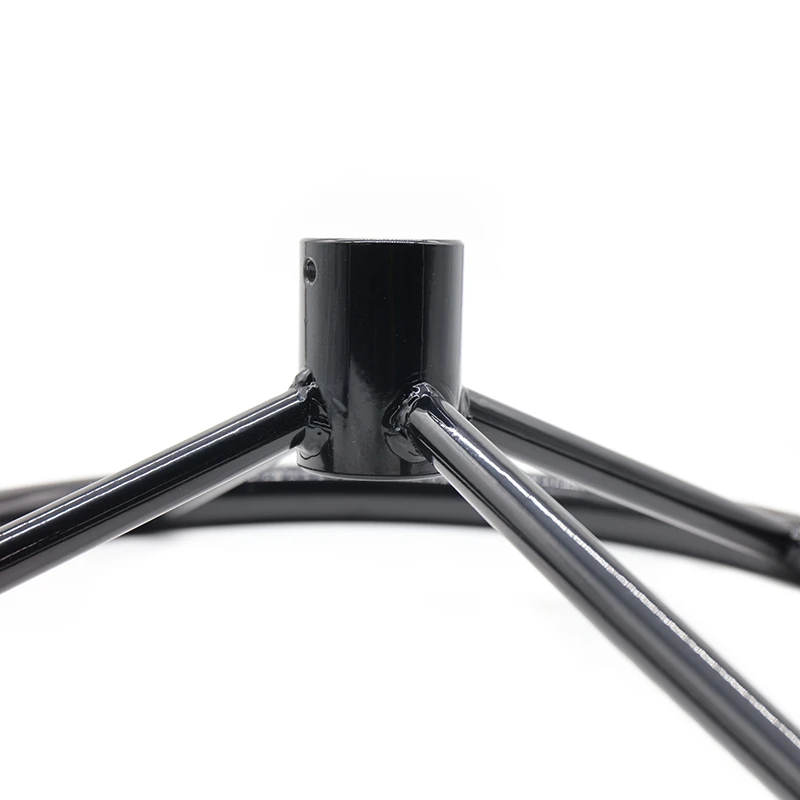

Component 03 · Central Hub
The hub connects the handwheel to the valve stem or mechanical shaft. Bore and keyway are machined to the specified shaft interface.
- Bore and keyway matched to the shaft
- Valve stem or mechanical shaft connection
Component 04 · Welded Assembly
The rim, spokes and hub are positioned and joined by welding into the complete handwheel. Welding lets separately formed parts become configurations that are difficult or uneconomical to cast as one piece.
- Separate components joined by welding
- Alternative to single-piece casting
Material Selection
Handwheel Material Selection: Steel, Iron & Aluminium
Carbon Steel
Provides good strength, weldability, and cost efficiency for general industrial applications.
Stainless Steel
Offers good corrosion resistance and durability for applications exposed to moisture, chemicals, or demanding environments.
Ductile Iron
Provides high strength, impact resistance, and durability for heavy-duty handwheel applications.
Cast Iron
Offers good rigidity, wear resistance, and dimensional stability for conventional industrial equipment.
Aluminium
Provides a lightweight solution with good corrosion resistance where reducing handwheel weight is important.
Welding Handwheel Manufacturing Process
A welded handwheel depends on coordinated fabrication and machining, not welding alone. The four stages below run in sequence for every order.
Component Preparation
The rim, spokes and hub are prepared to the approved dimensions and design before assembly begins.
1
>>
Positioning and Welding
Components are positioned to the specified geometry, then welded. Controlled assembly keeps the rim-to-hub relationship accurate.
2
>>
Machining
Where required, critical connection features — the bore, hub and keyway — are machined after welding for the operating shaft.
3
>>
Surface Finishing
Painting, powder coating, polishing, galvanizing or other specified treatments are applied by material and application.
4
Custom Welding Handwheel Specifications
Welded construction lets handwheel geometry follow different valve and equipment interfaces, instead of a fixed catalogue size.
Specification Basis
Each handwheel is produced to your approved drawing, sample or technical requirement.
Material Grade
Material grade is confirmed with you before production starts.
Surface Finish
Coating and finish are specified on the order and applied after machining.
Inspection
Installation dimensions are verified on the finished handwheel.
| Specification | Typical Requirement |
|---|---|
| Handwheel Diameter | 125–1,250 mm |
| Hub Diameter | Based on shaft connection |
| Bore | Plain, keyed or specified bore |
| Keyway | Width and depth according to shaft |
| Spoke Configuration | Number and arrangement according to design |
| Material | Carbon steel, stainless steel, ductile iron or specified material |
| Surface Finish | Powder coating, painting, galvanizing or other specified treatment |
Welding Handwheel Applications
About Chuangye: Welded Handwheel Manufacturer Since 2002
Information as stated in the company’s current product and company record.
2002
Industrial handwheel manufacturing since
ISO
9001:2015
Quality management system
φ120
–φ1200 mm
Approximate handwheel diameter range
5
types
Welded, stamped, stainless steel, cast metal handwheels and chainwheels
Manufacturer
Welded Handwheel Manufacturer & Supplier
Hangzhou Xiaoshan Chuangye Metal Processing Co., Ltd. is an industrial handwheel manufacturer specialising in welded handwheels for OEM and equipment applications.
Our in-house welding, machining and finishing are coordinated around your final dimensions and shaft connection, so one supplier handles the complete part.
- Handwheels since 2002
- Sheet metal welding
- Precision machining
- Surface finishing
- Metal fabrication
- Chainwheel production
Integrated Welding & Machining for Accurate Hubs
-
01Welding StageWelding builds the overall structure first. Connection features are not cut until the rim, spokes and hub are joined.
-
02Machining After WeldingThe bore, hub and mounting interface are machined on the completed structure, so the connection features are produced where they actually sit.
-
03Interface MatchingThis sequence keeps the connection interface accurate for the specified valve stem or shaft.
Chuangye produces handwheels from customer drawings, samples and technical specifications. Depending on the project, manufacturing may cover:
Drawing- and sample-based production is part of our custom handwheel service.
Overall diameter and thickness
Hub and bore dimensions
Keyway or shaft connection
Spoke arrangement
Material grade
Surface treatment
Logo or marking
Packaging requirements
Machining & Dimensional Control
Bore, Hub & Keyway Machining for Accurate Fit
The connection interface is the most critical area of a handwheel — it decides whether the part installs correctly on the shaft.
-
BORE
Plain, keyed or specified bore machined to the shaft interface after welding where required.
-
HUB
Hub dimensions matched to the specified valve stem or mechanical shaft, not a nominal size.
-
KEYWAY
Keyway width and depth cut to the shaft specification after welding.
-
INSPECTION
Dimensional inspection against the approved requirements for the installation features.
ISO 9001:2015 Quality Control for Welded Handwheels
Chuangye runs an ISO 9001:2015 quality management system with controls through manufacturing. Depending on requirements, inspection can cover:
Pre-Shipment Quality Inspection
Before shipment, finished handwheels are checked against the agreed requirements — a defined quality checkpoint between production and delivery.
OEM, Replacement & Custom Handwheel Supply
Export Packaging
Property By Categories
Packaging is chosen by handwheel dimensions, weight, quantity and transport mode, and can be confirmed to your shipping and handling requirements.

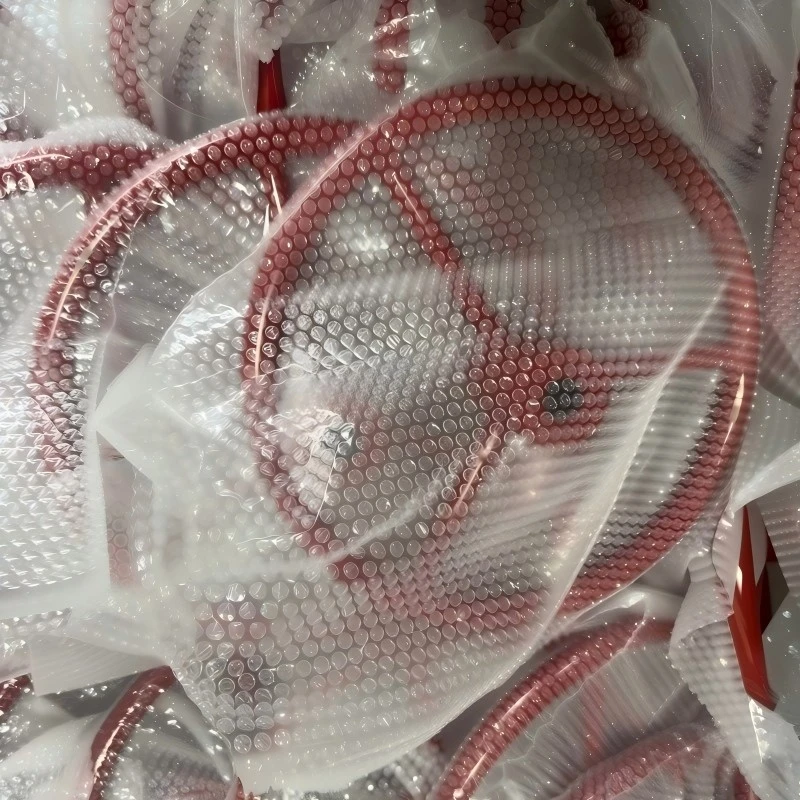

Individual Protective Packaging
Used where needed to reduce surface friction and impact during handling and transit
Per-piece protection
Outer Export Packaging
Larger quantities secured for export shipment
Bulk orders
Welding Handwheel FAQ
Q: What information is needed for a welding handwheel quotation?
A technical drawing or existing sample gives the best starting point for a custom welded handwheel quotation. If neither is available, provide the following:
- Required outside diameter and shaft connection
- Bore, keyway and material specification
- Estimated quantity and application
Q: How can I check whether your handwheel will fit our valve?
Compare the valve stem or operating shaft dimensions with the handwheel’s bore, hub and keyway. Sending the original component drawing or measurements lets us review the connection interface before production.
Q: Can you manufacture a replacement for an obsolete handwheel?
Yes. An existing handwheel can be used as a reference for dimensional evaluation. For older or discontinued equipment, the following can help establish the replacement specification:
- Photographs and measurements of the existing part
- Available shaft information
- Material and surface treatment requirements
Q: Can a sample be produced before mass production?
A pre-production sample can be considered when the project requires physical verification before bulk manufacturing. Sample requirements are reviewed according to the handwheel structure and machining requirements.
Q: Can the handwheel include customer markings?
Logo, identification marks or other specified markings can be evaluated according to the product structure and production requirements. The marking method should be confirmed before production.
Q: How do you handle large-diameter handwheel orders?
Large handwheels require consideration of component dimensions, welding sequence, machining requirements, handling and packaging. The production method and shipping arrangement can be confirmed according to the specific diameter, quantity and construction.
Q: Do you manufacture only standard handwheels?
No. Chuangye manufactures both standard and non-standard welded handwheel configurations from customer drawings, samples and specified technical requirements.
Get In Touch !
Enquiry
Request a Custom Welded Handwheel Quote
Send the technical details below. We review the connection interface against your drawing or sample before quoting, and confirm inspection requirements before the order.
Outside diameter and thickness
Bore and keyway dimensions
Material grade
Surface treatment
Quantity and application
